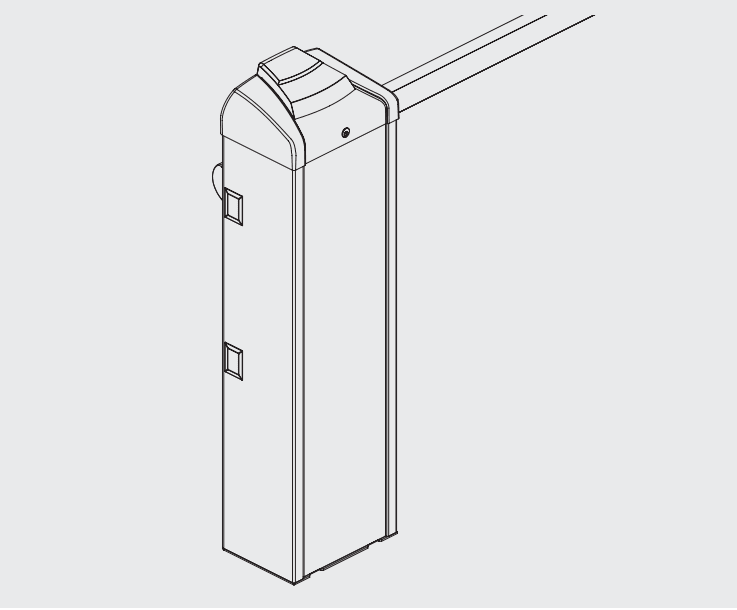

EVA.5 – Versatile Road Barrier System for Passages up to 5m

EVA.5 – Versatile Road Barrier System for Passages up to 5m

EVA.5 is an innovative road barrier system designed for passages up to 5 meters wide. Equipped with an integrated CP.EVA2 control unit and external manual operation release, this system is ideal for controlled access in various settings. It features the possibility of emergency power supply and synchronization of two motors for opposing barriers.

Product Description:

Discover the efficiency and reliability of the EVA.5 Road Barrier System:

  • Dynamic Functionality: Perfect for passages up to 5m, offering manual operation release for emergencies.
  • Technical Specifications: Includes 24Vdc motor power supply, 310W power consumption, and operates within a temperature range of -20°C to +50°C.
  • Versatile Operation: Capable of operating continuously with a noise level below 70 dB.
  • Safety and Control: Provides a robust 205 Nm torque with opening times adjustable from 35 to 6 seconds.
  • Innovative Power Options: Supports emergency operation through 12V 21Ah batteries or a KSUN photovoltaic panel with buffer batteries.
  • Installation Requirements: Designed for qualified personnel, ensuring the right installation and operational information is provided.

EVA.5 is an ideal solution for secure and efficient traffic management, ensuring smooth and controlled access.
